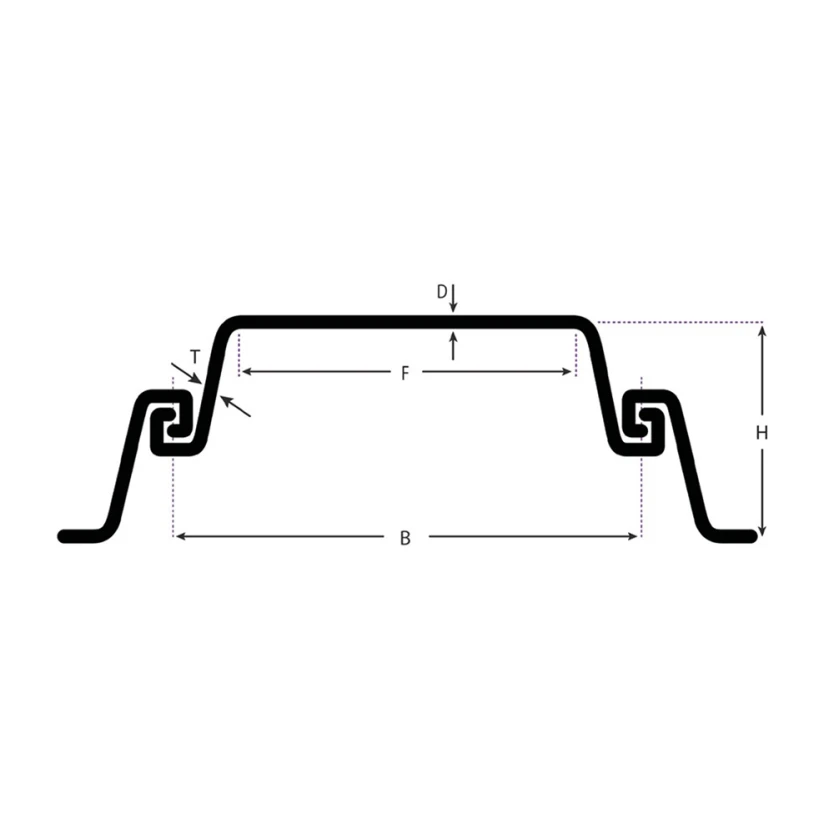

Larssen Range Interlocking

Larssen Sheet Piles are typically used in temporary or permanent cofferdams, retaining walls and foundation construction. Available in a range of sheet pile size, Larssen piles are also commonly used for marine projects due to the watertight quality of the interlocking section. Depending on ground conditions, consideration must be given to the length of the pile to be driven, depth of penetration, and ground loadings.

Available in various lengths and strength grade please contact us for specialist advise and quotations.

Select from product options

Product

Code

Weight

Product Combined Moment of Inertia (cm⁴/m) Width (mm) Length (mm) Height (mm) Section Modules (cm³/m) (
Larsen Range Interlocking - L601 11496 6.4 600 310 742
Larsen Range Interlocking - L602 13075 8 600 310 845
Larsen Range Interlocking - L603 20178 9 600 320 1261
Larsen Range Interlocking - L604 32599 9.5 600 390 1671
Larsen Range Interlocking - L605 42420 10 600 420 2020
Larsen Range Interlocking - L606 52631 9.2 600 420 2506
Larsen Range Interlocking - L607 69600 9.8 600 435 3200

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
