L8 Interlocking

L8 Trench sheets can be used to support earth banks and are ideal for permanent reinforcement of waterway banks and service trenches.

The strength, speed and flexibility of light sheet piles makes it ideal for all forms of temporary and permanent works, the durability and ease of extraction means that light sheet piling can be re-used in sustainable construction. In many cases, however, the use of a steel trench sheet structure can eliminate the need for temporary works with the trench sheet performing the permanent function concerned e.g. canals, and bank reinforcement.

Available in lengths 2.0m - 6.0m

L8 sheets are also available Galvanised please contact us for Galvanising costs

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Effective Width Per Sheet (mm) Length (mm) Bending Movement (Knm/m) Section Modules Per Sheet
L8 Interlocking - 2000mm 28.79 432 2000 8.22 22.23
L8 Interlocking - 3000mm 43.19 432 3000 8.22 22.23
L8 Interlocking - 4000mm 57.59 432 4000 8.22 22.23
L8 Interlocking - 5000mm 71.96 432 5000 8.22 22.23
L8 Interlocking - 6000mm 86.38 432 6000 8.22 22.23

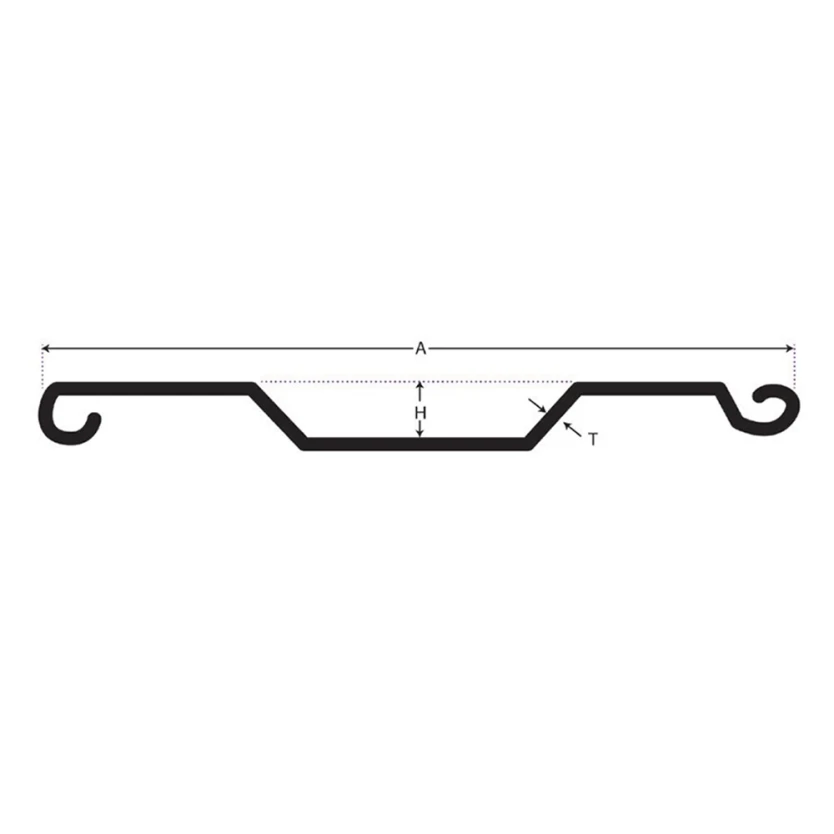

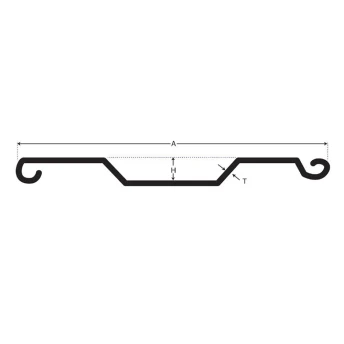

Interlocking L8 Trench Sheets utilise a specialised edge profile, allowing each sheet to securely slot into its neighbour. This creates a robust connection, offering superior strength compared to simple overlapping trench sheets, and significantly enhances the overall stability of the installed sheet pile wall.

The sheet piles are installed sequentially to the designated depth, following the planned perimeter of the excavation or seawall alignment. Once interlocked, they form a wall providing either permanent or temporary lateral earth support, effectively minimising groundwater inflow.

Benefits:

  • Easy Installation: Particularly advantageous in areas of restricted height.

  • Wider Cover Width: Reduces both installation time and costs.

Applications:

L8 Trench sheets can be used to support earth banks and are ideal for permanent reinforcement of waterway banks and service trenches.

For simplified installation, utilise our Quick Release Pitching Shackle for a faster, more efficient solution. Driving Caps are also available to minimise damage to your sheets during installation.

Extraction Clamps are also available to facilitate the safe extraction of your trench sheets.

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.

Frequently Bought Together

Extraction Clamps

Extraction Clamps

2 sizes available

Quick Release Pitching Shackle

Quick Release Pitching Shackle

2 sizes available

Driving Caps

Driving Caps

3 sizes available

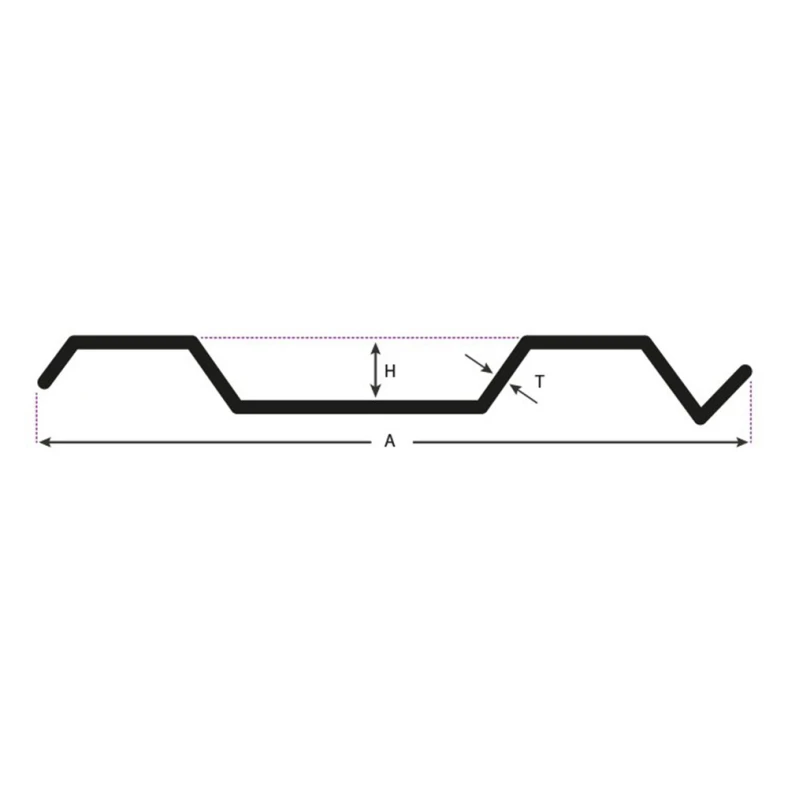

Standard Overlapping
