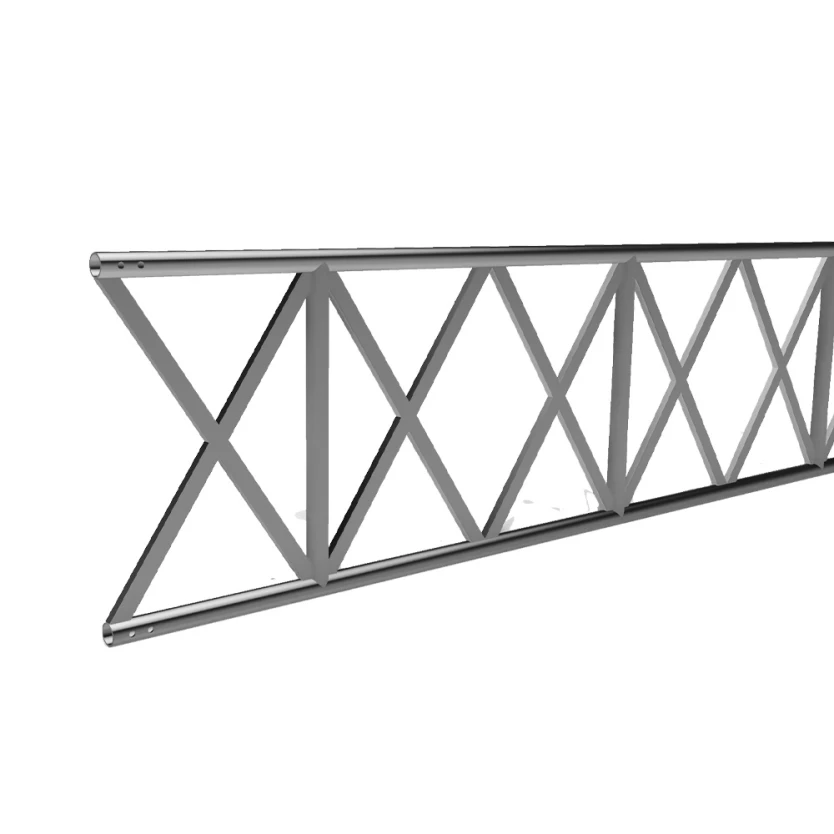

750mm Alloy X-Beam

Altrad Generation X-Beam is a high-strength and high-quality alternative to conventional methods. Specially designed and tested to BS 8118 for capacity and lightness.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
X-Beam 1.0m 8 - 1000 750
X-Beam 3.0m 24 - 3000 750
X-Beam 4.0m 32 - 4000 750
X-Beam Spigot c/w Nut and Bolt 0.9 - - -

X-Beams are a safe, labour-saving alternative, suitable for all applications such as large-span temporary roofs and suspended scaffolds. Available for both hire and sale they provide a cost-effective solution for any application, saving erection time and mechanical handling.

Permissable Moment – 35.0kNm

Permissable Shear – 35.0kN

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
