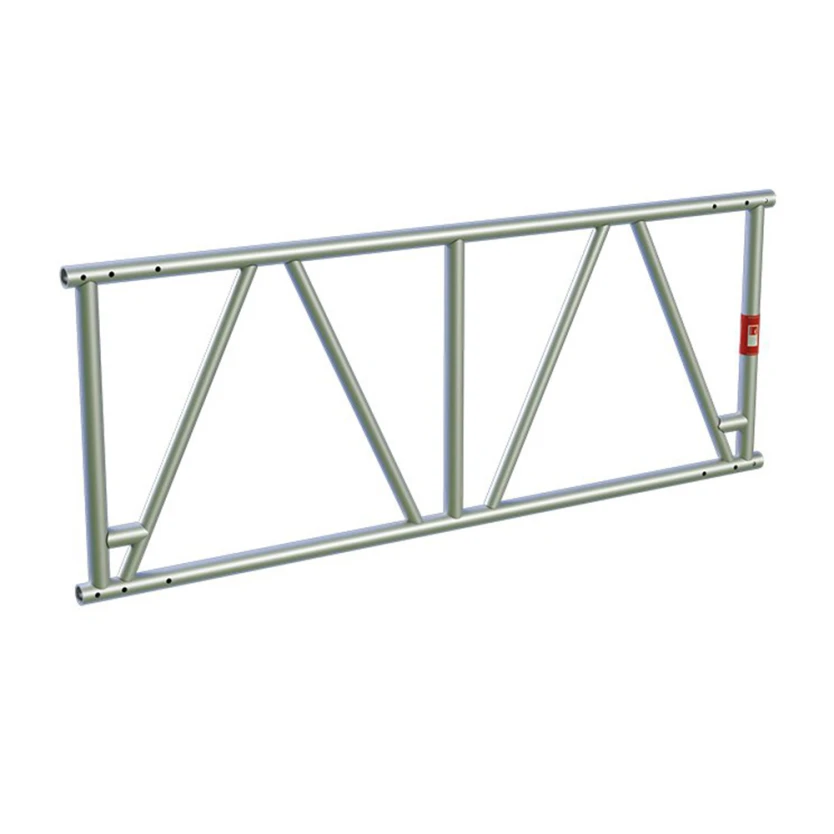

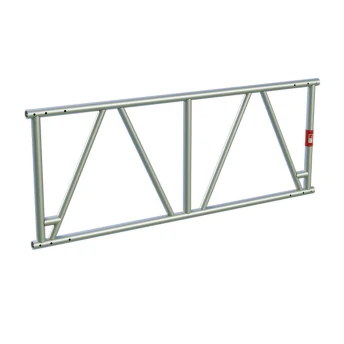

D780mm Alloy Beam

Main structural component for the creation of roof spans, also suitable for everyday general-purpose applications.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
D780mm Alloy Beam 0.5m 3.82 - 500 780
D780mm Alloy Beam 1.0m 6.34 - 1000 780
D780mm Alloy Beam 2.0m 11.63 - 2000 780
D780mm Alloy Beam 3.0m 16.92 - 3000 780
D780mm Alloy Beam 4.0m 22.21 - 4000 780
D780mm Alloy Beam 5.0m 27.5 - 5000 780
D780mm Alloy Beam 6.0m 32.79 - 6000 780
D780mm Alloy Beam 6 Hole Steel Spigot 1.49 - - -
D780mm Alloy Beam 60mm Spring Clip 0.025 - 60 -
D780mm Alloy Beam - L 1000mm 6.34 - 500 -
D780mm Alloy Beam - L 2000mm 11.63 - 1000 -
D780mm Alloy Beam - L 3000mm 16.92 - 2000 -
D780mm Alloy Beam - L 4000mm 22.21 - 3000 -
D780mm Alloy Beam - L 5000mm 27.5 - 4000 -
D780mm Alloy Beam - L 500mm 3.82 - 5000 -
D780mm Alloy Beam - L 6000mm 32.79 - 6000 -

The user-friendly D78 beam range offers an unrivalled cost-to-weight ratio and is equally at home in a heavy-duty support scaffold or an elegant roofing application.

  • High strength, low weight and maximum versatility.

  • Manufactured in traditional scaffold tube size.

  • Vertical posts are provided each 1m on all beam sizes.

  • Consistent node spacing when multiple beams are joined. Node points spaced to connect a standard scaffold fitting at any point.

  • Made in the EU to ISO 9001:2008 from Alloy 6082 T6.



Permissable Moment – 38.8kNm

Permissable Shear – 23.7kN

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
