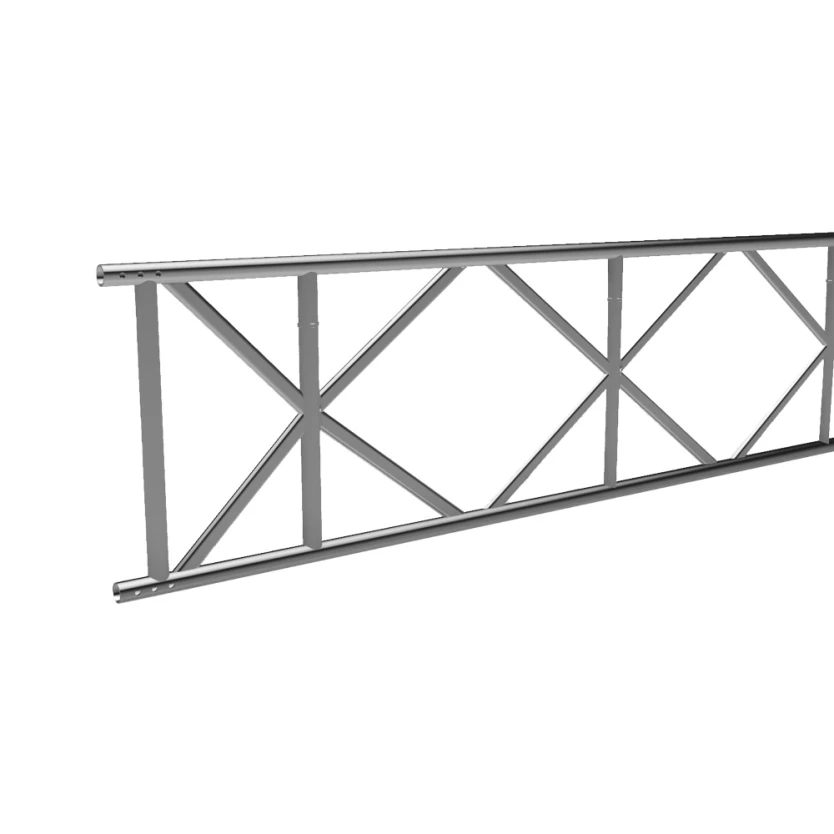

750mm Asterix Alloy Beam

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
Asterix 750 Beam 1.0m 8.5 - 1000 750
Asterix 750 Beam 2.0m 15 - 2000 750
Asterix 750 Beam 3.0m 21.6 - 3000 750
Asterix 750 Beam 4.0m 28.2 - 4000 750
Asterix 750 Beam 5.0m 35 - 5000 750
Asterix 750 Beam 6.0m 42 - 6000 750
Asterix 750 Beam 6 Hole Steel Spigot 2 - - -
Asterix 750 Beam 60mm Spring Clip 0.025 - - -
  • Fully compatible with the X-beam (capacity not equivalent)

  • All cords and posts are manufactured from traditional scaffold tubes.

  • Vertical posts are provided each 1m on all beam sizes

  • Offers consistent node spacing when multiple beams are joined

  • Node points spaced to connect a standard scaffold fitting at any point

BS EN 1999-1 (1.0m Restraints)

Permissable Moment – 41.3 kNm

Permissable Shear – 23.7 kN

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
