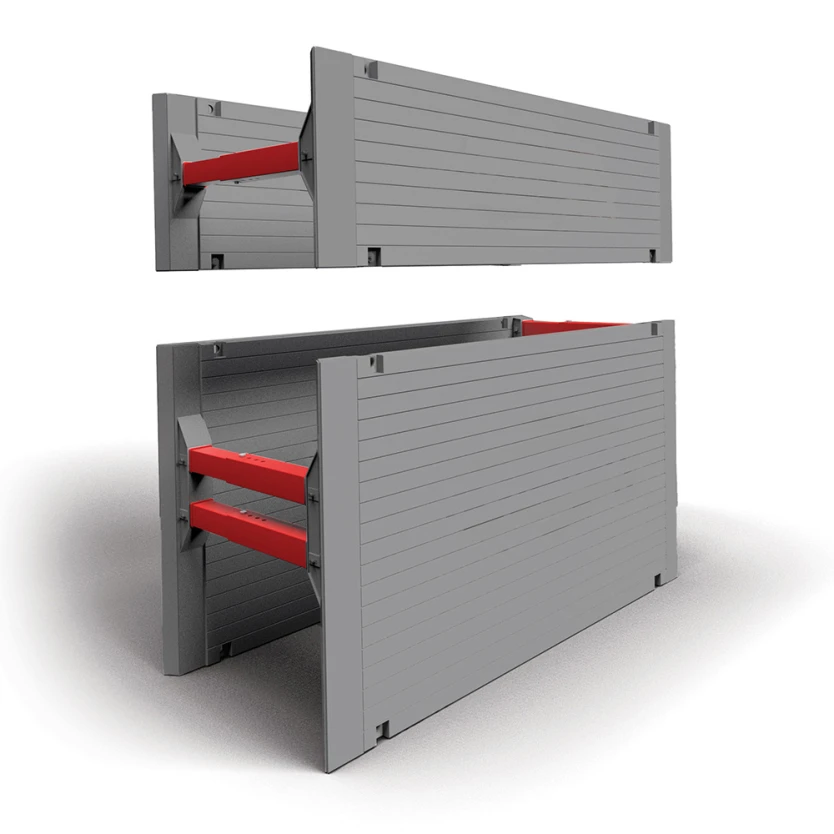

BV100 Standard Drag Box

Drag Boxes are a speedy alternative to Trench Boxes, where speed of production is paramount. The Drag Box is used in stable, self supporting soil conditions, and is lowered into a pre-dug trench. Then, with the aid of an excavator, it is dragged along via the front strut as pipe production moves along the trench. In order to enable this, a Drag Box has a cutting edge on the front of the box rather than at the bottom. Drag Boxes also tend to be used on green or brown field sites, where there are no services or obstructions. Drag Boxes should only be used as a shield not as a support.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
BV100 Standard Drag Box - 3m 2000 - - -
BV100 Standard Drag Box - 4m 2510 - - -
BV100 Standard Drag Box - 5m 3050 - - -
BV100 Standard Drag Box - 7m 4620 - - -

Drag Boxes are a speedy alternative to Trench Boxes, where speed of production is paramount. The Drag Box is used in stable, self supporting soil conditions, and is lowered into a pre-dug trench. Then, with the aid of an excavator, it is dragged along via the front strut as pipe production moves along the trench. In order to enable this, a Drag Box has a cutting edge on the front of the box rather than at the bottom. Drag Boxes also tend to be used on green or brown field sites, where there are no services or obstructions. Drag Boxes should only be used as a shield not as a support.

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.

Frequently Bought Together

Uni 18° Ridge Track 1.33m Asterix Beam

Uni 18° Ridge Track 1.33m Asterix Beam

1 size available

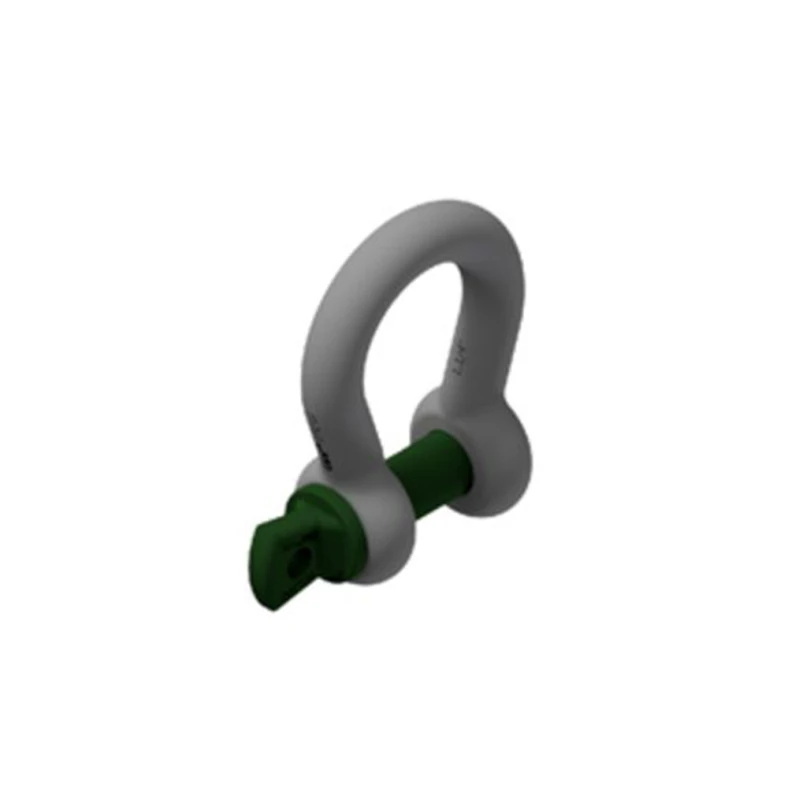

Quick Release Pitching Shackle

Quick Release Pitching Shackle

2 sizes available

Boss Clima Tower D/W 1.8m

Boss Clima Tower D/W 1.8m

20 sizes available

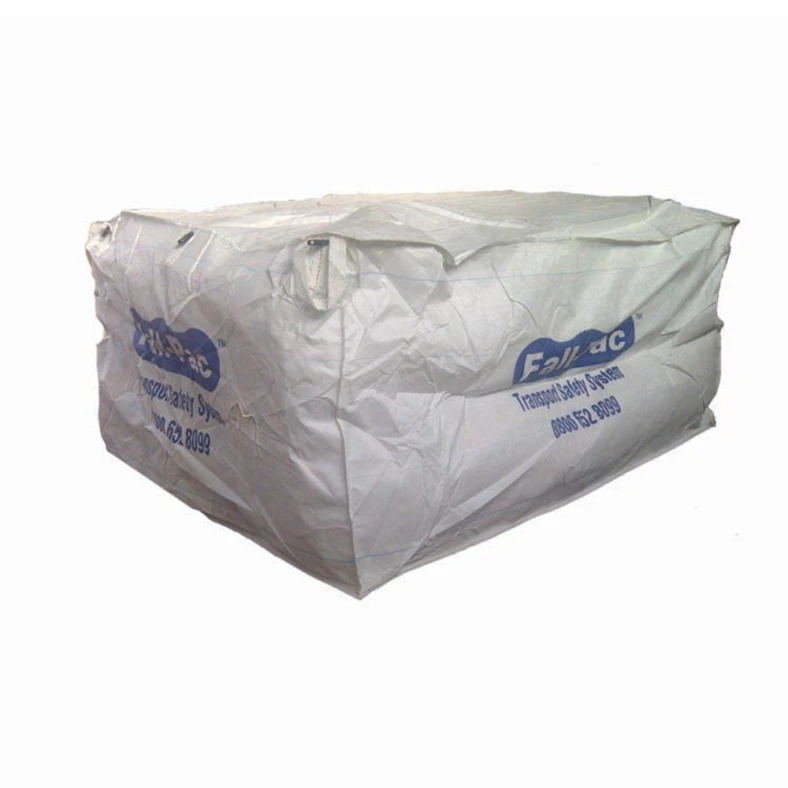

Fall-Pac Soft Landing Bag 2.5m x 0.644m

Fall-Pac Soft Landing Bag 2.5m x 0.644m

1 size available

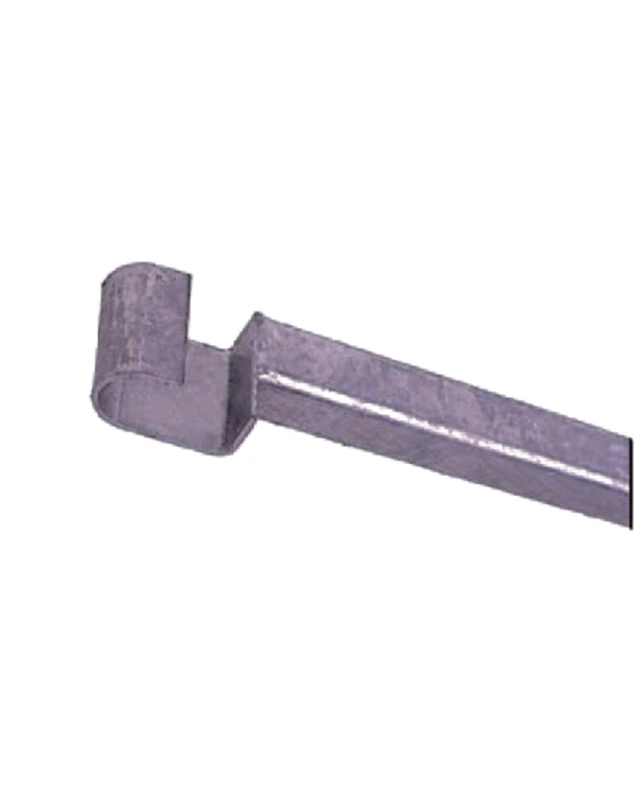

Infill Tie - 8ft
