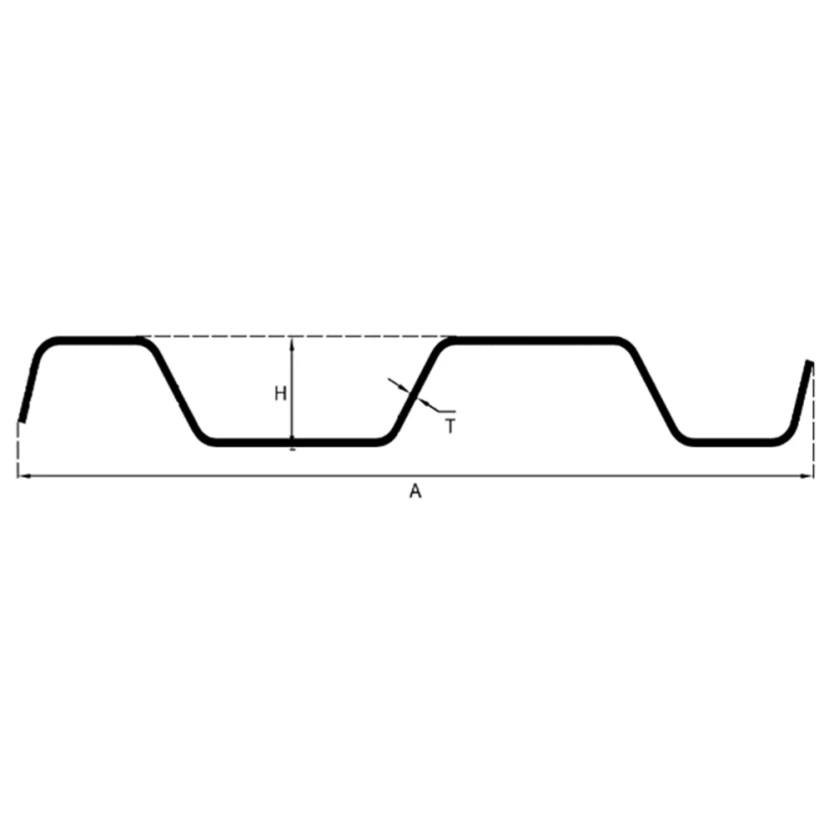

Altrad Generation's KKD600/6 Overlapping Trench Sheets are the most widely used lap trench sheet in the range, chosen by groundwork contractors across the UK for their strength, reliability, and versatility across medium to deep excavation projects. At 6mm thick and manufactured to S275 JR steel grade, the KKD600/6 is designed for excavations where the lighter 3.5mm Standard Overlapping sheet does not provide sufficient strength.
Available in nine lengths from 3000mm to 7000mm, with weights from 109.2kg to 254.8kg, the KKD600/6 suits a wide range of trench depths and soil conditions. Sheets are driven vertically into the ground using a driving cap to prevent damage during installation, and are extracted using Extraction Clamps at the end of the project. Quick Release Pitching Shackles allow safe sheet positioning from ground level.
KKD600/6 Overlapping Trench Sheets are available for hire and purchase from Altrad Generation branches across the UK and Ireland.
Key Features and Benefits
Thickness: 6mm, manufactured to S275 JR steel grade
Nine lengths available: 3000mm to 7000mm in 500mm increments
Weights: 109.2kg (3000mm) to 254.8kg (7000mm)
Most popular lap trench sheet in the Altrad Generation range
Designed for medium to deep excavations in demanding ground conditions

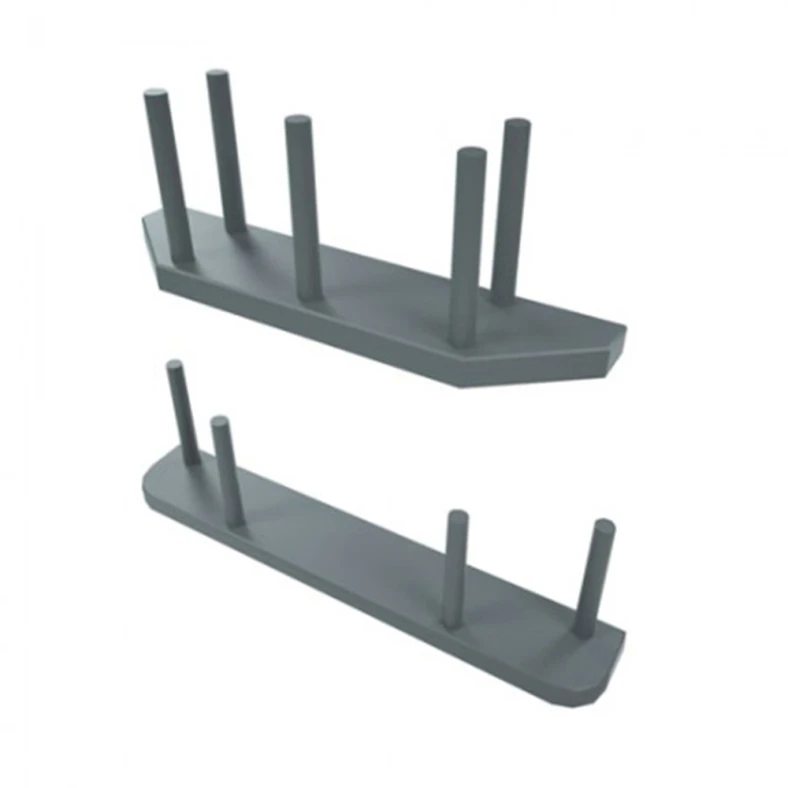

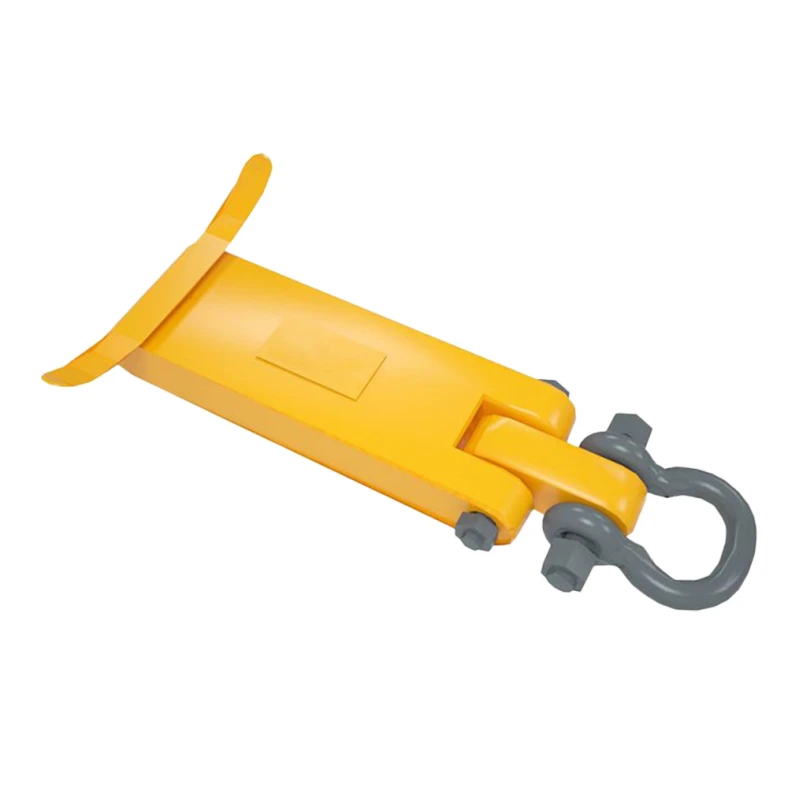

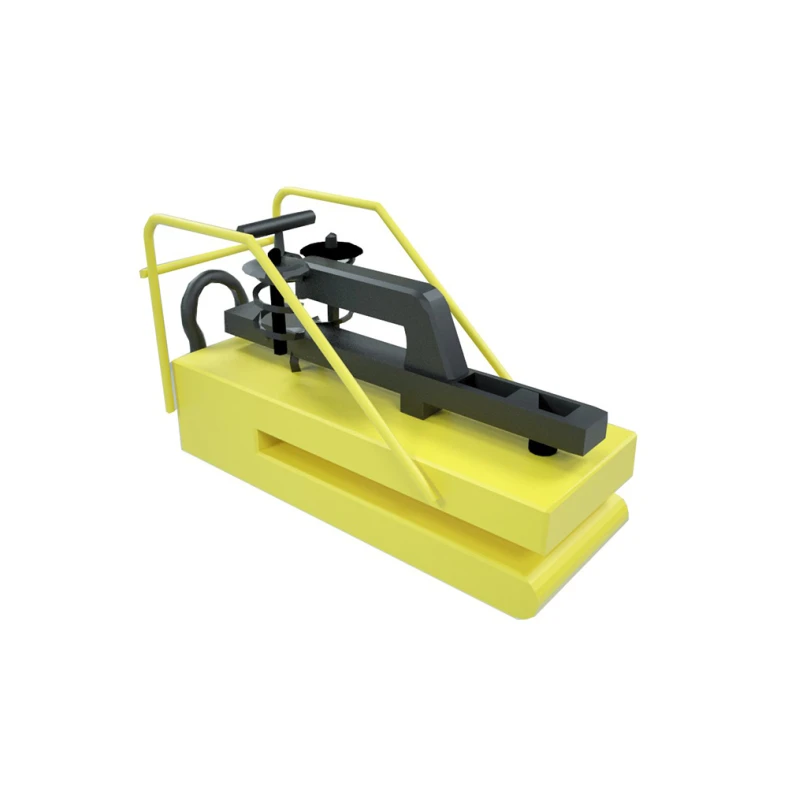

Compatible with Driving Caps, Quick Release Pitching Shackles, and Extraction Clamps
Available for hire and purchase
Frequently Asked Questions
Q: What are KKD600/6 trench sheets used for?
A: KKD600/6 Overlapping Trench Sheets support the walls of medium to deep excavations during utility installation, drainage work, and civil engineering projects. The 6mm thickness provides greater strength than standard lap sheets, making them the preferred choice for more demanding ground conditions.
Q: How does the KKD600/6 differ from the Standard Overlapping sheet?
A: The KKD600/6 is 6mm thick and manufactured to S275 JR steel grade, providing greater section strength than the 3.5mm Standard Overlapping sheet. The KKD600/6 is the appropriate choice for deeper excavations or where ground conditions require additional wall support.
Q: What lengths are KKD600/6 sheets available in?
A: KKD600/6 sheets are available in nine lengths from 3000mm to 7000mm in 500mm increments, with weights ranging from 109.2kg to 254.8kg.
Q: What accessories are compatible with KKD600/6 trench sheets?
A: Altrad Generation Driving Caps, Quick Release Pitching Shackles, and Extraction Clamps are all compatible with KKD600/6 sheets for safe installation and extraction.
Q: Are KKD600/6 trench sheets available for hire?
A: Yes. KKD600/6 Overlapping Trench Sheets are available for hire and purchase from Altrad Generation branches across the UK and Ireland. Contact your nearest branch for availability and pricing.
