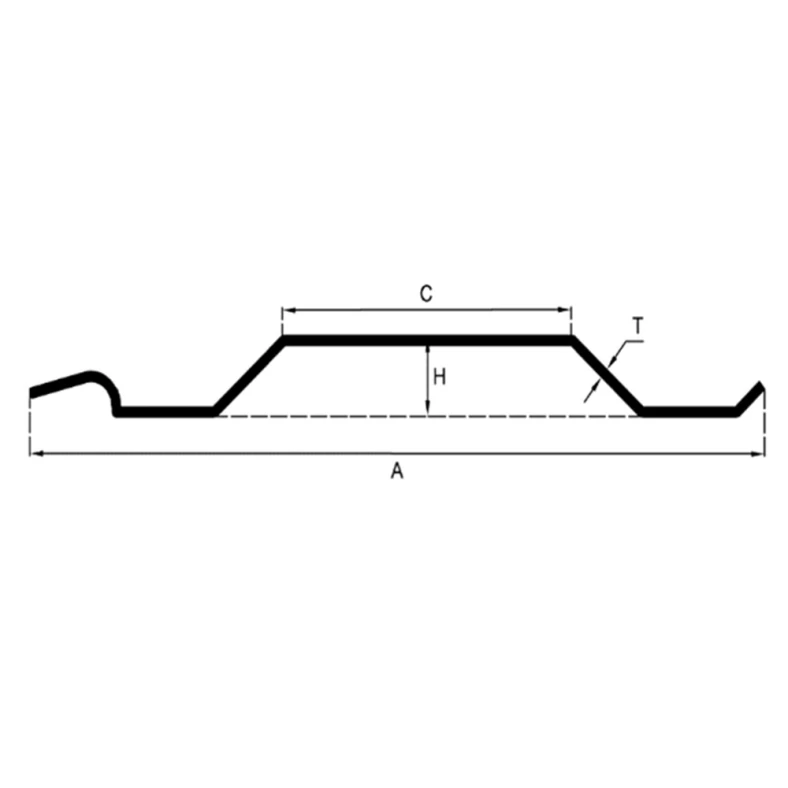

KKD600/8 Overlapping

The KKD 600/8 overlapping trench sheets are a heavy-duty version of our KKD600/6mm lapped trench sheets being 2mm thicker creating a greater section modulus. KKD 600/8mm trench sheets are used during excavation works to shore up ground works and hold back ground, stopping the walls of the excavations from caving in. As they are 8mm thick, they are usually used for deeper excavations than our 6mm KKD600/6mm trench sheets are used for.

Available in lengths 3.0m – 7.0m

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Sectional Area (cm²) Length (mm) Mass Single Pile (kg/m) Mass Per m Wall (kg/m²) Moment of Inertia (cm⁴) Elastic Section Modules (cm³) Radius of Gyration (cm)
KKD600/8 Overlapping - 3000mm 150 64.44 3000 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 3500mm 175 64.44 3500 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 4000mm 200 64.44 4000 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 4500mm 225 64.44 4500 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 5000mm 250 64.44 5000 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 5500mm 275 64.44 5500 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 6000mm 300 64.44 6000 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 6500mm 325 64.44 6500 50.00 83.33 968.00 242 3.00
KKD600/8 Overlapping - 7000mm 350 64.44 7000 50.00 83.33 968.00 242 3.00

The KKD 600/8 overlapping trench sheets are a heavy-duty version of our KKD600/6mm lapped trench sheets, being 2mm thicker creating a greater section modulus. KKD 600/8mm trench sheets are used during excavation works to shore up ground works and hold back ground, stopping the walls of the excavations from caving in. As they are 8mm thick, they are usually used for deeper excavations than our 6mm KKD600/6 trench sheets are used for.

Available in lengths 3.0m – 7.0m

For simplified installation, utilise our Quick Release Pitching Shackle for a faster, more efficient solution. Driving Caps are also available to minimise damage to your sheets during installation.

Extraction Clamps are also available to facilitate the safe extraction of your trench sheets.

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
