HD2 Overlapping

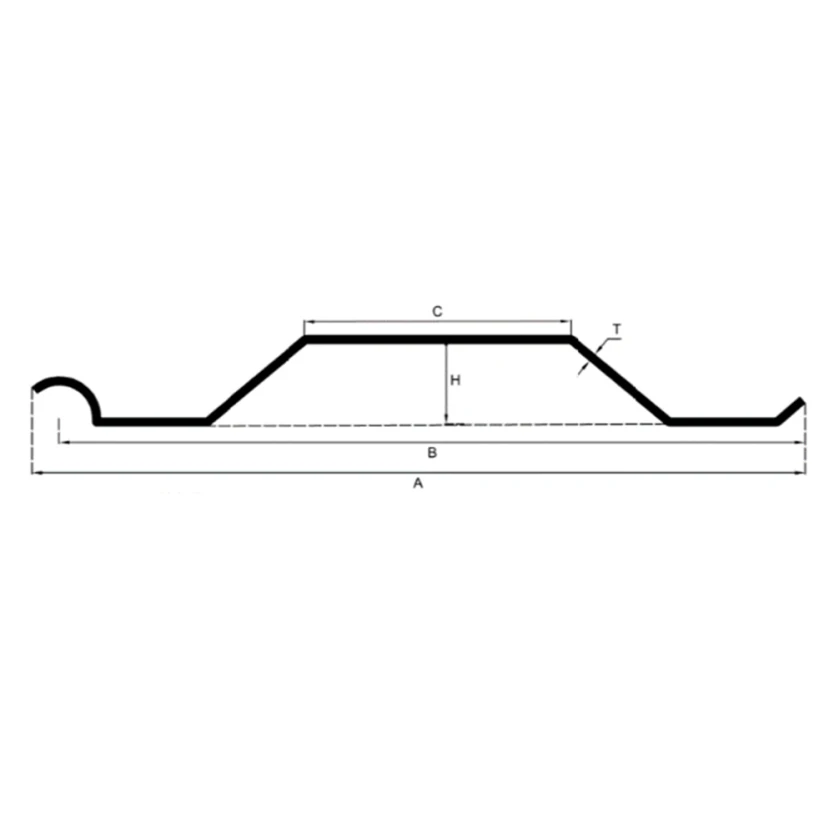

HD2 Trench sheets 8mm thick are a similar strength to our KKD/600 8mm sheets, however having an effective width of 742mm, they are ideal for covering large areas faster and with a quicker installation time. HD2 sheets are used for larger deeper excavations.

Available in lengths 2.0m-8.0m

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Section Modules Per Sheet Section Modules cm³ per metre Length (mm) Bending Movement (Knm/m)
HD2 Overlapping - 2000mm 108.34 187.91 253.25 2000 59
HD2 Overlapping - 2500mm 135.43 187.91 253.25 2500 59
HD2 Overlapping - 3000mm 162.51 187.91 253.25 3000 59
HD2 Overlapping - 3500mm 189.6 187.91 253.25 3500 59
HD2 Overlapping - 4000mm 216.68 187.91 253.25 4000 59
HD2 Overlapping - 4500mm 243.77 187.91 253.25 4500 59
HD2 Overlapping - 5000mm 270.85 187.91 253.25 5000 59
HD2 Overlapping - 5500mm 297.93 187.91 253.25 5500 59
HD2 Overlapping - 6000mm 325.02 187.91 253.25 6000 59
HD2 Overlapping - 6500mm 352.10 187.91 253.25 6500 59
HD2 Overlapping - 7000mm 379.19 187.91 253.25 7000 59
HD2 Overlapping - 7500mm 406.27 187.91 253.25 7500 59
HD2 Overlapping - 8000mm 433.36 187.91 253.25 8000 59

HD2 Trench sheets 8mm thick are a similar strength to our KKD/600 8mm sheets, however having an effective width of 742mm, they are ideal for covering large areas faster, with a quicker installation time. HD2 sheets are used for larger deeper excavations.

Available in lengths 2.0m - 8.0m

For simplified installation, utilise our Quick Release Pitching Shackle for a faster, more efficient solution. Driving Caps are also available to minimise damage to your sheets during installation.

Extraction Clamps are also available to facilitate the safe extraction of your trench sheets.

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
