Castor Top Plates

Provides a 0-degree connection to the structure when used in conjunction with the D78 Beam Bearer (440130). Top plate to be fixed to castor with 4 x M12 x 45mm bolts and nuts.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
Castor Top Plate 0 Degrees 5 - - -
Castor Top Plate 18 Degrees 5.2 - - -
Castor Top Plate with D78 Beam Spigot 3.4 - - -

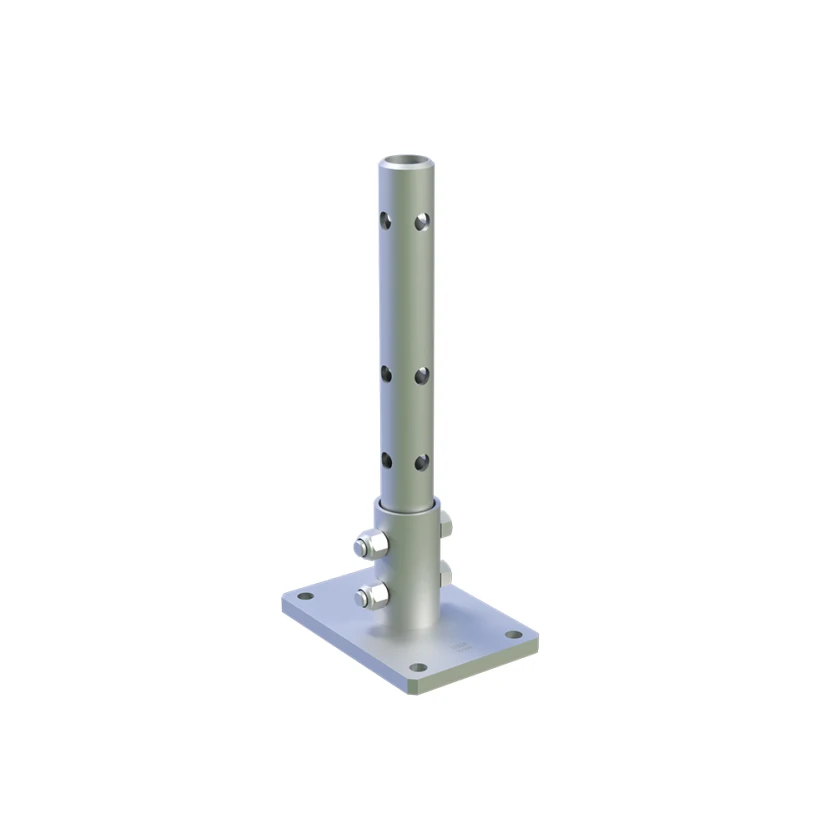

Castor Top Plate w. D78 Beam Spigot

Enables direct connection to D78mm alloy beams, fixed in place with 2 x 60mm spring pins. Top plate to be fixed to castor with 4 x M12 x 45mm bolts and nuts.

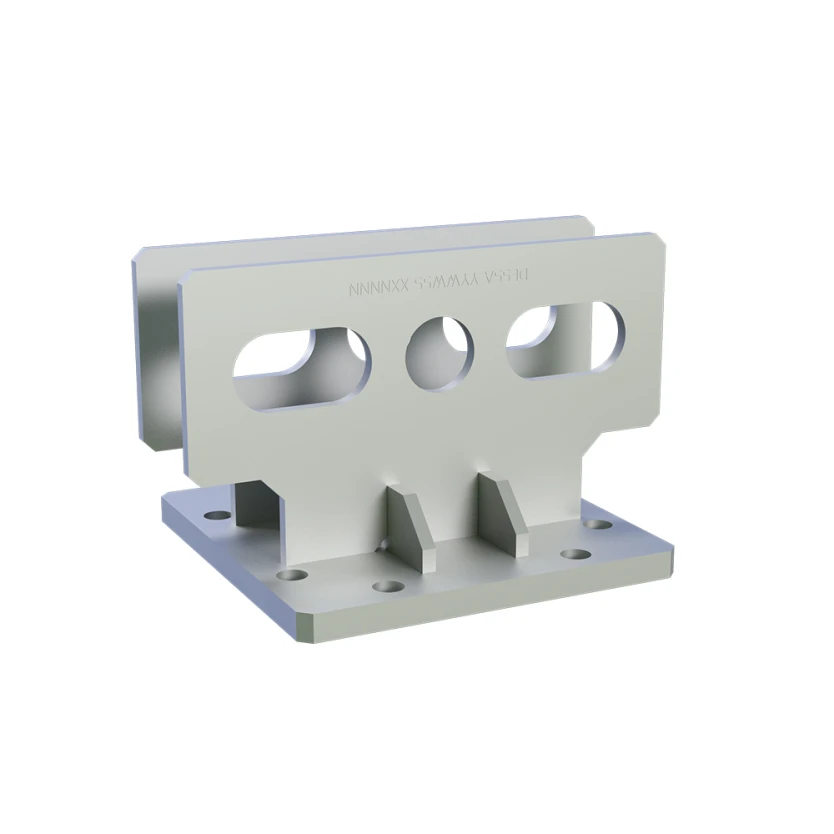

Castor Top Plate 0° Degrees

Provides a 0-degree connection to the structure when used in conjunction with the D78 Beam Bearer (440130), Top plate to be fixed to castor with 4 x M12 x 45mm bolts and nuts.

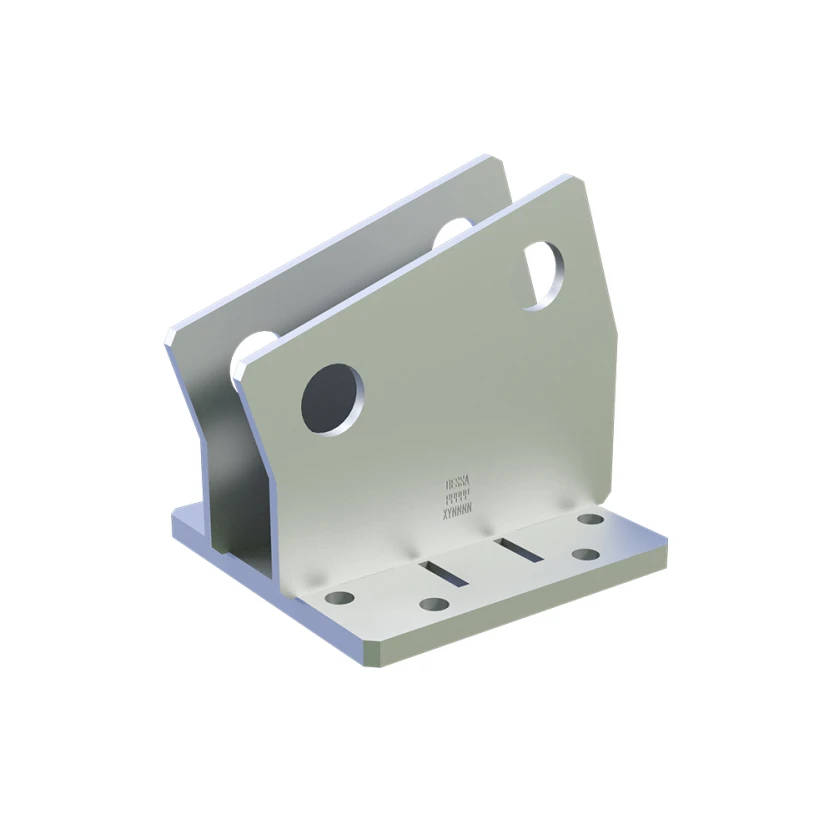

Castor Top Plate 18° Degrees

Enables an 18-degree connection to the roof structure when used in conjunction with the D78 Beam Bearer (440130) and the 1.33mtr Asterix Beam Bearer (442771), top plate to be fixed to castor with 4 x M12 x 45mm bolts and nuts.

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.

Looking for a solution?

Looking for a solution?

Altrad Generation offer the Uni-Roof temporary roofing system. This is the ideal choice and has proven itself with over 25 years of continual use in the industrial, commercial, historic and domestic markets.
