Vertical Brace

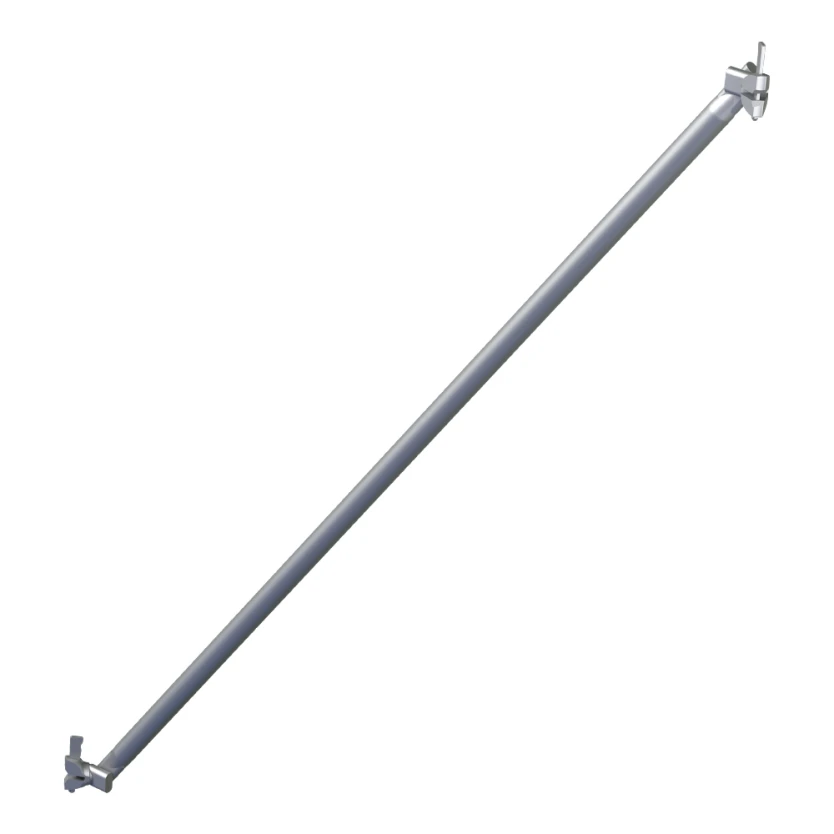

48.3mm x 2.7mm galvanised steel tube with a swivel wedge fitting to either end, sometimes referred to as a face brace.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
0.5m H x 2.07m L Vertical Brace 7.8 - - -
1.0m H x 1.09m L Vertical Brace 6 - - -
1.0m H x 1.40m L Vertical Brace 6.66 - - -
1.0m H x 1.57m L Vertical Brace 7.1 - - -
1.0m H x 2.07m L Vertical Brace 8.4 - - -
1.0m H x 2.57m L Vertical Brace 9.8 - - -
1.0m H x 3.07m L Vertical Brace 11.2 - - -
1.5m H x 1.57m L Vertical Brace 8.1 - - -
1.5m H x 2.07m L Vertical Brace 9.2 - - -
1.5m H x 2.57m L Vertical Brace 10.5 - - -
1.5m H x 3.07m L Vertical Brace 11.8 - - -
2.0m H x 0.73m L Vertical Brace 8.2 - - -
2.0m H x 1.09m L Vertical Brace 8.5 - - -
2.0m H x 1.40m L Vertical Brace 9 - - -
2.0m H x 1.57m L Vertical Brace 9.3 - - -
2.0m H x 2.07m L Vertical Brace 10.3 - - -
2.0m H x 2.57m L Vertical Brace 11.4 - - -
2.0m H x 3.07m L Vertical Brace 11.4 - - -

48.3mm x 2.7mm galvanised steel tube with a swivel wedge fitting to either end, sometimes referred to as a face brace. Available to fit all bay lengths with up to 4 different height sizes. Designed to reinforce a scaffolding structure vertically, this item can also be used for supporting scaffolding fans and the erection of cantilevered scaffolds.

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
