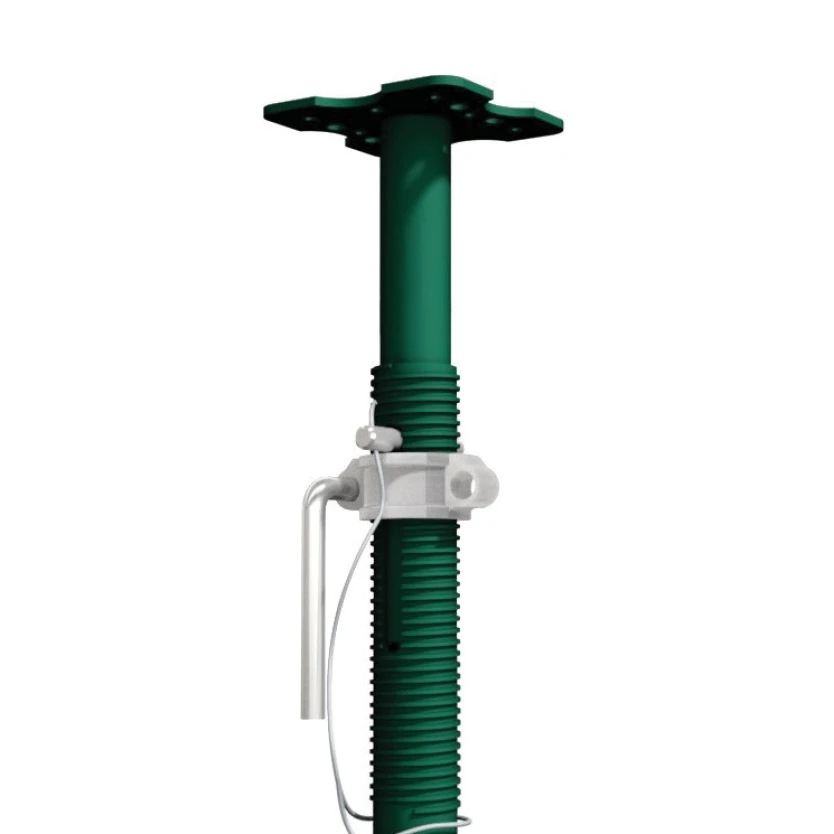

Adjustable Steel Props

Manufactured to BS4074:1982 and tested to BS5507-3:1982, Altrad Generation’s Adjustable Steel Props are designed to support a range of formwork and falsework applications, floors, ceilings, openings and temporary beams.

Read full description

Select from product options

Product

Code

Weight

Product Height (m) Weight (kg)
Adjustable Steel Prop - Size 0 1.04 - 1.83 12.95
Adjustable Steel Prop - Size 1 1.75 - 3.13 18.64
Adjustable Steel Prop - Size 2 1.98 - 3.35 19.55
Adjustable Steel Prop - Size 3 2.59 - 3.96 22.57
Adjustable Steel Prop - Size 4 3.20 - 4.88 26.36

Outer tube: 60.3mm Dia / Inner tube of 48.3mm Diameter.
Head and Base Plates: 150x150x6mm to BS4360 with 38mm Dia. hole.

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

  • 1-10 Miles

  • 11-25 Miles

  • 26-40 Miles

  • 40 Miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
