More about Uni-Roof

Altrad Generation hire & sale offers the Uni-Roof Temporary Roofing System, this aluminium system is based around the use of the 0.45m, 0.78m and 1.33m alloy lattice beams. Standard bay sizes are available at 2.072mtr / 2.572mtr / 3.072mtr widths with other bay width options available upon request for specialised applications. With spans of up to 50m along with Mono pitch, Duo pitch 18-degree and 36-degree roofing types available the Uni-Roof system is the ideal choice and has proven itself with over 25 years of continual use in the industrial/commercial/historic and domestic markets.

Versatile

• Fully modular roofing system in a range of sizes, will fit any project.

• Fits on any scaffolding system or tube and fittings, maximum on-site flexibility and stock utilisation.

• Multi-function beams with separate tracking use beams for other purposes when roof is idle.

• Mono or duo-pitch roof configurations

• From a simple roof covering to fully modular roofing system in a range of sizes will fit any project.

• Sheets can be terminated at any track joint, allows split or staggered bays and copes with over length roof beams.

• Individual bays easily opened, allows access for craned materials.

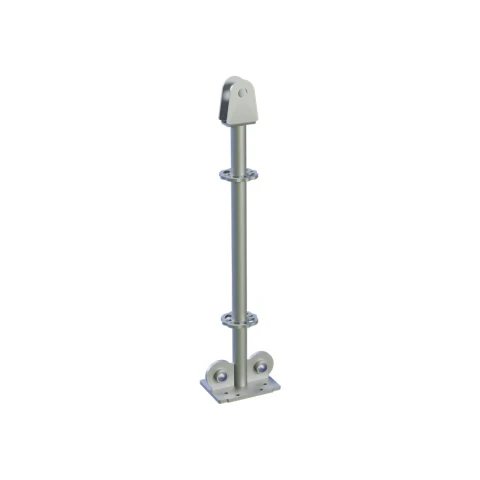

• Can be rail-mounted on steel rollers, whole sections of building can be uncovered.

• The roof bay sizes are identical to the Futuro Scaffold System for a very easy method of complete encapsulation to give a seamless integration that eliminates complicated load paths and provides a clean structural solution utilising standard components.

Simple

• Minimal number of different parts, simple logical assembly and easy stocking.

• Unique connection technology for tracking requires no couplers or pins, tracks slide into position, simple, safe and quick assembly in situ.

• Loose components eliminated, all parts snap together without bolts.

High Performance

• Clear spans up to 60m (65m with extra design measures), exceeds most competitors.

• Unique rubber seal between tracks, seals and locates perfectly while allowing gap between tracks for sheeting termination.

• Special spring-loaded track tensioners keep roof perfectly weatherproof at all times.

• Compact ridge beam, allows tailored roof profile and reduced scaffold mass 18 degree pitch, efficient water dispersal and no ponding.

Safe

• Durable PVC sheeting firmly secured in Keder tracking, safe erection from below.

• Lightweight aluminium beams and bracing, erect in situ or at height without the need for craneage.

• Superior strength and durability, proven even in the worst weather conditions.

Deep Flow Sheet Tracking

Heavy-duty aluminium profile with an integrated gutter system which allows for the installation of sheeting to temporary roofs or sidewall cladding elements.

*Deep Flow tracking system is not a standard Uni-roof component and is available for hire & sale, please contact your local Altrad Generation branch for costings*
