Altrad Generation hire & sale offers the Uni-Roof Temporary Roofing System, this aluminium system is based around the use of the 0.45m, 0.78m and 1.33m alloy lattice beams. Standard bay sizes are available at 2.072mtr / 2.572mtr / 3.072mtr widths with other bay width options available upon request for specialised applications. With spans of up to 50m along with Mono pitch, Duo pitch 18-degree and 36-degree roofing types available the Uni-Roof system is the ideal choice and has proven itself with over 25 years of continual use in the industrial/commercial/historic and domestic markets.
Versatile
Fully modular roofing system in a range of sizes, will fit any project.
Fits on any scaffolding system or tube and fittings, maximum on-site flexibility and stock utilisation.
Multi-function beams with separate tracking use beams for other purposes when roof is idle.
Mono or duo-pitch roof configurations
From a simple roof covering to fully modular roofing system in a range of sizes will fit any project.
Sheets can be terminated at any track joint, allows split or staggered bays and copes with over length roof beams.
Individual bays easily opened, allows access for craned materials.

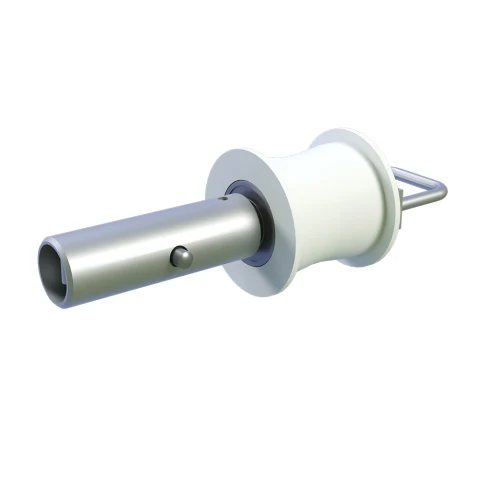

Can be rail-mounted on steel rollers, whole sections of building can be uncovered.
The roof bay sizes are identical to the Futuro Scaffold System for a very easy method of complete encapsulation to give a seamless integration that eliminates complicated load paths and provides a clean structural solution utilising standard components.
Simple
Minimal number of different parts, simple logical assembly and easy stocking.
Unique connection technology for tracking requires no couplers or pins, tracks slide into position, simple, safe and quick assembly in situ.
Loose components eliminated, all parts snap together without bolts.
High Performance
Clear spans up to 60m (65m with extra design measures), exceeds most competitors.
Unique rubber seal between tracks, seals and locates perfectly while allowing gap between tracks for sheeting termination.

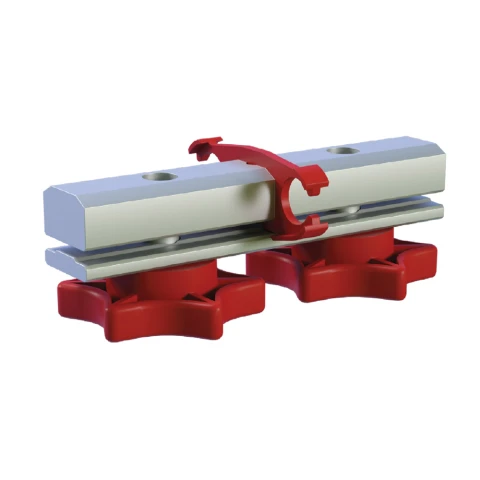

Special spring-loaded track tensioners keep roof perfectly weatherproof at all times.

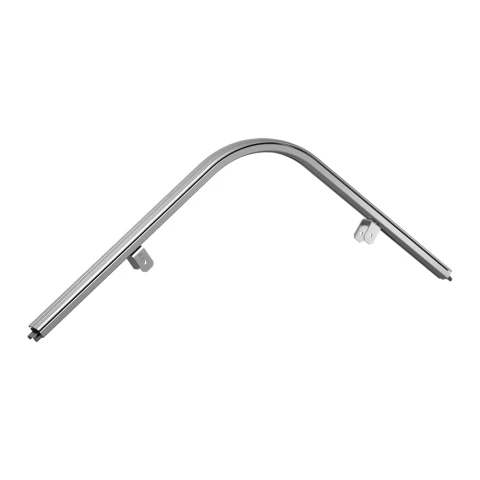

Compact ridge beam, allows tailored roof profile and reduced scaffold mass 18 degree pitch, efficient water dispersal and no ponding.
Safe

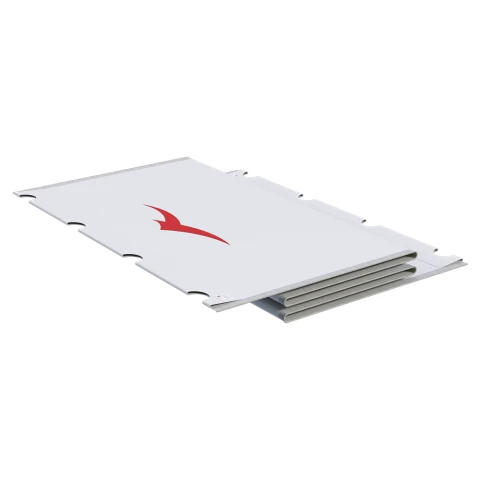

Durable PVC sheeting firmly secured in Keder tracking, safe erection from below.
Lightweight aluminium beams and bracing, erect in situ or at height without the need for craneage.
Superior strength and durability, proven even in the worst weather conditions.

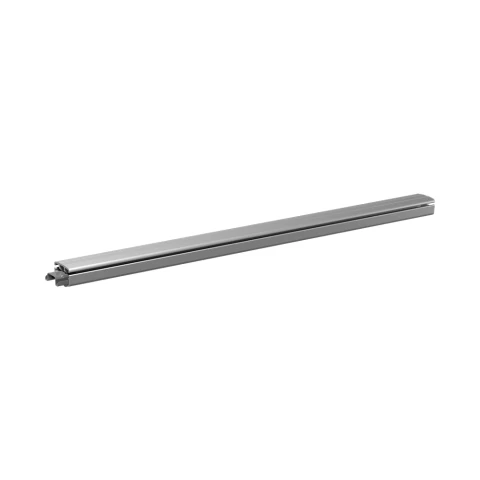

Deep Flow Sheet Tracking
Heavy-duty aluminium profile with an integrated gutter system which allows for the installation of sheeting to temporary roofs or sidewall cladding elements.
*Deep Flow tracking system is not a standard Uni-roof component and is available for hire & sale, please contact your local Altrad Generation branch for costings*
